SFT2924GM 28 Chaw nres nkoj 24GE POE + 4GE Combo Tag Nrho Gigabit Managed Ethernet POE Switch
Tus Qauv Zauv:SFT2924GM
Hom:Softel
MOQ: 1
24 * 10/100 / 1000M RJ45 + 4 * 100 / 1000M Combo Chaw nres nkoj
Txhawb QOS, STP/RSTP, IGMP, DHCP, SNMP, WEB, VLAN, ERPS thiab lwm yam
Tsim kev siv hluav taws xob tsawg
01
Kev piav qhia txog khoom
Kev Taw Qhia Luv Luv
Lub SFT2924GM series yog lub gigabit L2 + tswj hwm ethernet fiber hloov. Nws muaj 4 * 100/1000 combo ports thiab 24 * 10/100 / 1000Base-T RJ45 ports.
Lub SFT2924GM muaj L2+ tag nrho kev tswj hwm network, txhawb nqa IPV4/IPV6 kev tswj hwm, txoj kev static tag nrho kab tus nqi xa mus, kev tiv thaiv kev ruaj ntseg, ua tiav ACL/QoS txoj cai thiab nplua nuj VLAN functions, thiab yooj yim rau kev tswj hwm thiab tswj hwm. Txhawb nqa ntau lub network redundancy protocols STP/RSTP/MSTP (<50ms) thiab (ITU-T G.8032) ERPS los txhim kho kev sib txuas thaub qab thiab kev ntseeg siab ntawm network. Thaum ib txoj kev network tsis ua haujlwm, kev sib txuas lus tuaj yeem rov qab tau sai sai kom ntseeg tau tias kev sib txuas lus tsis cuam tshuam tseem ceeb rau cov ntawv thov.
Cov yam ntxwv
- 24 * 10/100 / 1000M RJ45 + 4 * 100 / 1000M Combo Chaw nres nkoj Ethernet Hloov,
- Ua raws li IEEE 802.3, IEEE 802.3u, IEE802.3ab, IEE802.3z cov qauv;
- Txhawb QOS, STP/RSTP, IGMP, DHCP, SNMP, WEB, VLAN, ERPS thiab lwm yam.;

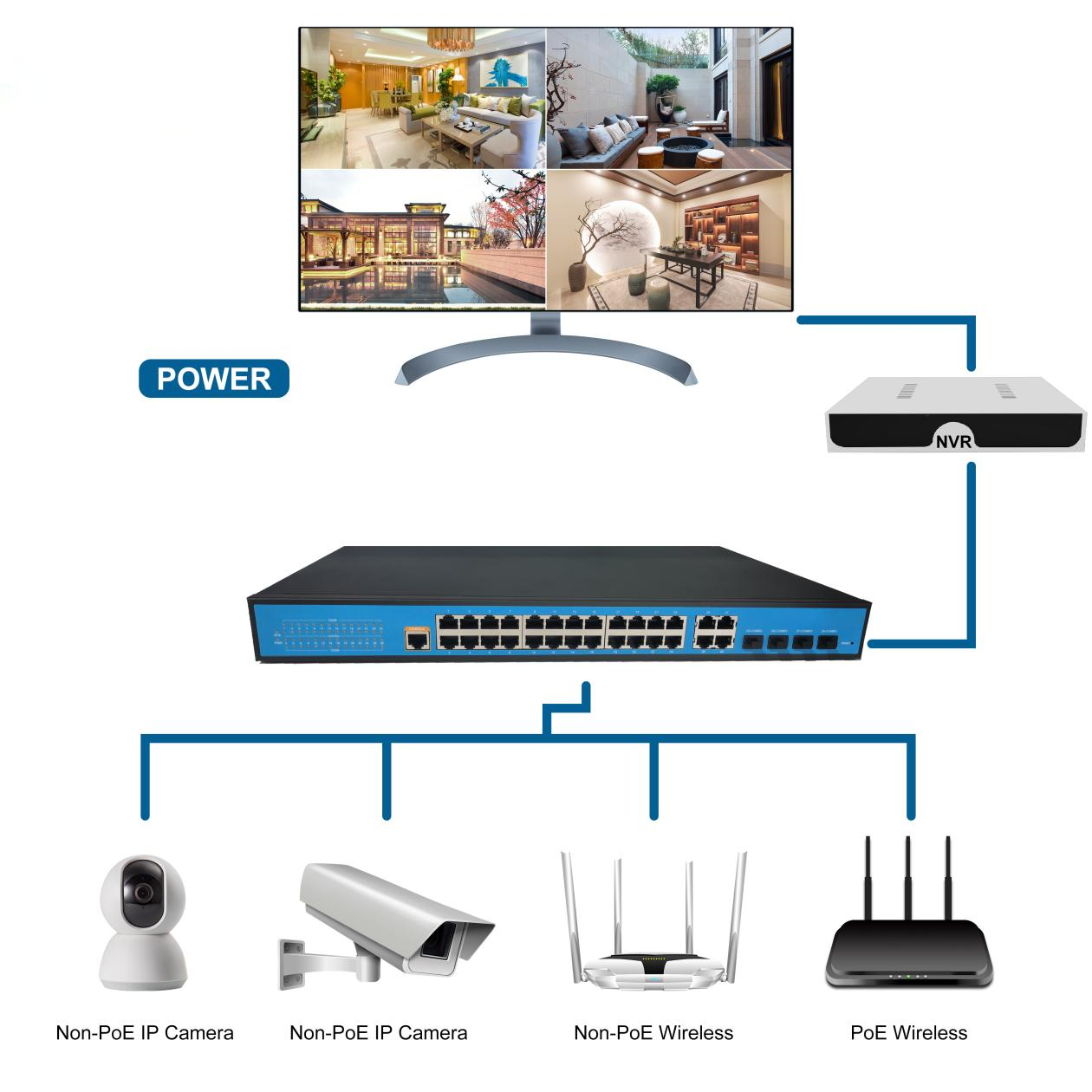

- Txhawb kev sib txuas nrog IP Cameras thiab wireless AP.
- Plug thiab ua si, tsis tas yuav muaj ntau yam kev teeb tsa.
- Tsim qauv siv hluav taws xob tsawg. Tsim qauv siv hluav taws xob tsawg. Txuag hluav taws xob thiab ntsuab. Kev siv hluav taws xob tag nrho siab tshaj < 15W.
| Qauv | SFT2924GM Tag Nrho Gigabit Managed Ethernet POE Hloov |
| Chaw nres nkoj ruaj khov | 24 * 10/100 / 1000Base-T/TX RJ45cov chaw nres nkoj (Cov ntaub ntawv)4*Kev sib xyaw ua kecov chaw nres nkoj (Cov ntaub ntawv)1 * RS232 console chaw nres nkoj (115200, N, 8, 1) |
| Chaw nres nkoj Ethernet | 10/100/1000Base-T(X), Kev Tshawb Nrhiav Tus Kheej, Kev Hloov Kho Tus Kheej Tag Nrho / Ib Nrab Duplex MDI / MDI-X |
| Kev Sib Kis Twisted Pair | 10BASE-T: Cat3,4,5 UTP (≤100 'meter')100BASE-TX: Cat5 lossis tom qab UTP (≤100 'meter')1000BASE-T: Cat5e lossis tom qab UTP (≤100 'meter') |
| Chaw nres nkoj SFP | Gigabit SFP optical fiber interface, lub neej ntawd phim optical modules (xaiv tau ib hom / ntau hom, ib hom fiber / ob hom fiber optical module. LC) |
| Cable kho qhov muag | Ntau hom: 850nm 0 ~ 550M, ib hom: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. |
| Hom Kev Tswj Xyuas Network | L2+ |
| Cov Txheej Txheem Network | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u 100Base-TX;IEEE802.3ab 1000Base-T;IEEE802.3z 1000base-X;IEEE802.3x. |
| Hom Kev Xa Mus Rau Lwm Tus | Khaws thiab Xa Mus Rau Tom Ntej |
| Kev Hloov Peev Xwm | 56Gbps (Tsis thaiv) |
| Tus Nqi Xa Mus Rau Lwm Tus | 26.78Mpps |
| MAC | 8K |
| Nco tsis siv neeg | 6M |
| Lub Ncej Loj | 9.6K |
| Qhov Qhia LED | Qhov qhia txog fais fab: PWR (Ntsuab);Qhov qhia txog network: 1-28 chaw nres nkoj 100M-(Txuas/Ua)/ (Txiv kab ntxwv),1000M-(Txuas/Ua)/ (Ntsuab);SYS:(Ntsuab) |
| Pib dua qhov hloov | Yog, Ib lub khawm Hoobkas pib dua |
| Kev Muab Fais Fab | Lub hwj chim ua ke, AC 100 ~ 220V 50-60Hz |
| Kev Ua Haujlwm TEMP / Av noo | -20~+55°C, 5%~90% RH Tsis muaj dej noo |
| Kev Khaws Cia Kub / Av noo | -40~+75°C, 5%~95% RH Tsis muaj dej noo |
| Qhov Loj (L * W * H) | 440 * 290 * 45mm |
| Qhov hnyav tag nrho / Qhov hnyav tag nrho | <4.5kg / <5kg |
| Kev teeb tsa | Rooj ntawv saum rooj, 19-nti 1U txee |
| Kev Tiv Thaiv | IEC61000-4-2 (ESD): ± 8kV kev sib cuag, ± 15kV cua tawmIEC61000-4-5 (Kev tiv thaiv xob laim/Surge): Lub zog: CM ± 4kV/DM ± 2kV; Chaw nres nkoj: ± 4kV |
| PQib kev tiv thaiv | IP30 |
| Daim Ntawv Pov Thawj | CCC, CE cim, kev lag luam; CE/LVD EN60950; FCC Tshooj 15 Chav Kawm B; RoHS |
| Kev Pov Hwm | 3 xyoos, kev saib xyuas tas mus li. |
| Kev Sib Txuas Lus | IEEE802.3X (Full-duplex)Chaw nres nkoj kub tiv thaiv qhov chawChaw nres nkoj ntsuab Ethernet teeb tsa txuag hluav taws xobKev tswj cua daj cua dub raws li qhov ceev ntawm chaw nres nkojQhov txwv ceev ntawm cov lus xa mus rau hauv qhov chaw nkag.Qhov tsawg kawg nkaus ntawm cov khoom me me yog 64Kbps. |
| Txheej 3 Nta | Kev tswj hwm network L2+,Kev tswj hwm IPV4/IP6L3 kev xa mus rau lwm txoj kev yooj yim,Txoj Kev Tsis Hloov, Txoj Kev Tsis Hloov @ 128 daim, APR @ 1024 daim |
| VLAN | 4K VLAN raws li qhov chaw nres nkoj, IEEE802.1qVLAN raws li cov txheej txheemVLAN raws li MACLub suab VLAN, QinQ teeb tsaKev teeb tsa chaw nres nkoj ntawm Access, Trunk, Hybrid |
| Kev Sib Sau Ua Ke ntawm Chaw Nres Nkoj | LACP, Kev sib sau ua ke zoo li qubMax 9 pawg sib sau ua ke thiab 8 chaw nres nkoj ib pawg. |
| Tsob Ntoo Loj | STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s) |
| Kev Sib Txuas Lus Hauv Network ntawm Lub Nplhaib Kev Lag Luam | G.8032 (ERPS), Lub sijhawm rov qab tsawg dua 20ms250 Lub Nplhaib ntau tshaj plaws, Max 254 lub cuab yeej ib lub nplhaib. |
| Multicast | MLD Snooping v1/v2, Multicast VLANIGMP Snooping v1/v2, Max 250 multicast pawg, Tawm sai sai |
| Kev Mirroring Chaw Nres Nkoj | Bidirectional data mirroring raws li qhov chaw nres nkoj |
| QoS | Kev Txwv Tus Nqi Raws Li Kev NqusKev lim dej raws li pob ntawv ntws8 * Cov kab tso zis ntawm txhua qhov chaw nres nkoj802.1p/DSCP qhov kev qhia tseem ceebQoS sib txawv, Cim tseem ceeb/lus cimQueue Scheduling Algorithm (SP, WRR, SP + WRR) |
| ACL | Kev Muab Tawm ACL Raws Li Chaw Nres Nkoj, ACL Raws Li Chaw Nres Nkoj Thiab VLANL2 txog L4 pob ntawv lim, phim thawj 80 bytes cov lus. Muab ACL raws li MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, thiab VLAN, thiab lwm yam. |
| Kev Ruaj Ntseg | Kev khi IP-MAC-VLAN-Chaw nres nkojKev tshuaj xyuas ARP, Kev tawm tsam Anti-DoSAAA & RADIUS, MAC kev kawm txwvMac qhov dub, kev tiv thaiv IP qhov chawIEEE802.1X & MAC chaw nyob authenticationKev tswj cua daj cua dub tshaj tawm, thaub qab rau tus tswv tsev datumSSH 2.0, SSL, Kev rho tawm chaw nres nkoj, kev txwv ceev ntawm cov lus ARPKev tswj hwm hierarchical ntawm tus neeg siv thiab kev tiv thaiv password |
| DHCP | DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay |
| Kev Tswj Xyuas | Ib qho kev rov qab losKev Tshawb Fawb Txog Cable, LLDPKev Tswj Xyuas Lub Vev Xaib (HTTPS)NTP, Cov ntaub ntawv teev cia ua haujlwm ntawm lub kaw lus, Kev Ntsuas PingKev saib xyuas qhov xwm txheej ntawm CPU tam sim ntawdConsole/AUX Modem/Telnet/SSH2.0 CLIRub tawm & Tswj ntawm FTP, TFTP, Xmodem, SFTP, SNMP V1/V2C/V3NMS - lub platform tswj hwm network ntse (LLDP + SNMP) |
| Lub kaw lus | Qeb 5 Ethernet network cableWeb browser: Mozilla Firefox 2.5 lossis siab dua, Google browser chrome V42 lossis siab dua, Microsoft Internet Explorer10 lossis siab dua;TCP/IP, network adapter, thiab network operating system (xws li Microsoft Windows, Linux, lossis Mac OS X) uas tau teeb tsa rau txhua lub computer hauv network |
SFT2924GM 28 Chaw Nres Nkoj Tag Nrho Gigabit Managed Ethernet POE Switch Datasheet.pdf
