24F - 144F Loose Tube ADSS Optic Cable Corning Fiber | All-dielectric Aerial Fiber Optic Cable 80- 100M Span
Tus Qauv Zauv: ADSS-12-144F-XX
Hom:Softel
MOQ:10KM
Kev Tsim Qauv Logo thiab Qhov Ntev Cable
Muaj ib lub tsho loj los yog ob lub tsho loj
Muaj Peev Xwm Ntau Lawm
01
Kev piav qhia txog khoom
1 Kev Taw Qhia

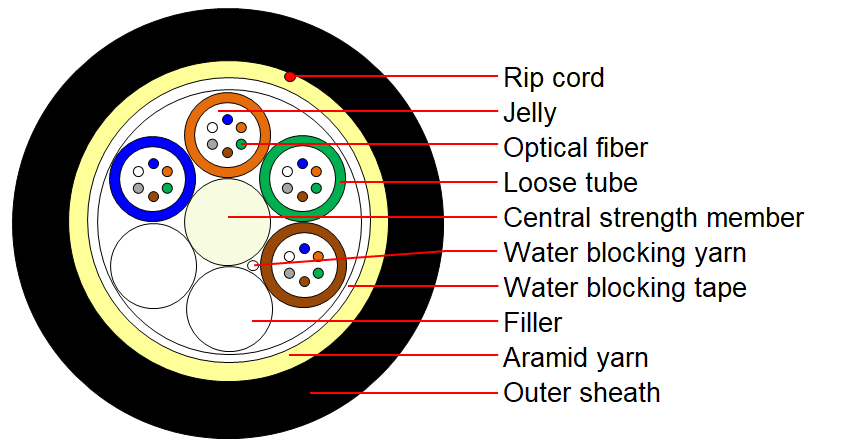

Kev tsim cov raj xa dej xoob, cov raj xa dej puv nrog cov khoom siv jelly, cov ntsiab lus (cov raj xa dej thiab cov khoom sau)thaum tsim nyog) muab tso rau ib puag ncig cov khoom siv uas tsis yog hlau uas muaj zog, cov xov polyester siv los khi lub cable core, dejthaivdaim kab xev qhwv lub cable core, aramid xov pajsmuaj zog, 1 ripcordthiab PE sab nraud.
2. Cov yam ntxwv ntawm Optical Fiber
G652Dcov ntaub ntawv txog fiber
Hom teb txoj kab uas hla (1310nm): 9.2mm ± 0.4mm
Hom teb txoj kab uas hla (1550nm): 10.4mm ± 0.8mm
Qhov txiav tawm wavelength ntawm cabled fiber (l)cc): £1260nm
Kev txo qis ntawm 1310nm: £ 0.36dB / km
Kev txo qis ntawm 1550nm: £ 0.22dB / km
Kev poob ntawm kev khoov ntawm 1550nm (100 tig, 30 hli radius): £0.05dB
Kev tawg ntawm qhov ntau ntawm 1288 txog 1339nm: £3.5ps/ (nm•km)
Kev tawg ntawm 1550nm: £18ps/ (nm•km)
Qhov nqes hav ntawm qhov sib txawv ntawm xoom dispersion wavelength: £ 0.092ps / (nm)2•km)
3. Cov Cai Xim Fiber
Xim fiber hauv txhua lub raj pib ntawm No. 1Blus.
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Blus | Ontau yam | Green | Brown | Glub teeb ci ntsa iab | Wntaus | Red | Btsis muaj | Yellow | Purple | Pkua mem | Aqhov twg |
4. Ximccov lus qhuas raultawmtube &fillerrod
Xim raj pib ntawm No. 1Blue. Yog tias muaj cov khoom ntxiv, cov xim yog xwm.
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Blus | Ontau yam | Green | Brown | Glub teeb ci ntsa iab | Wntaus | Red | Btsis muaj | Yellow | Purple | Pkua mem | Aqhov twg |
5. Cov qauv cable thiab parameter
| SN | Khoom | Chav tsev | Tus nqi | ||
| 1 | Tus naj npawb ntawm cov fibers | suav | 12/24 | 36 | 48 |
| 2 | Tus naj npawb ntawm cov fibers ib lub raj | suav | 4 | 6 | 12 |
| 3 | Tus naj npawb ntawm cov ntsiab lus | suav | 6 | 6 | 6 |
| 4 | Txoj kab uas hla ntawm lub raj | mm | 2.6 | 2.6 | 2.8 |
| 5 | FRP txoj kab uas hla | mm | 2.8 | 2.8 | 3 |
| 6 | Sab hauv lub hnab tuab | mm | 0.8 | 0.8 | 0.8 |
| 7 | Lub txheej sab nraud tuab | mm | 1.7 | 1.7 | 1.7 |
| 8 | Txoj kab uas hla ntawm cable | mm | 13.2 | 13.2 | 13.9 |
| 9 | Qhov hnyav ntawm cable | kg/km | 144 | 147 | 158 |
| 10 | MAT (M)ax. Kev nruj ua haujlwm tso cai) | N | 3600 | 3600 | 4000 |
| 11 | Kev sib hlub luv luv | N/100 hli | 2200 | ||
| 12 | Lub Sijhawm Siab Tshaj Plaws | m | 100 | ||
| 13 | Qhov tuab ntawm dej khov | mm | 0 | ||
| 14 | Wqhov ceev ind | Km/teev | 20 | ||
6. Yam ntxwv ntawm Optical Cable
6.1Min.lub vojvoog khoovrau kev teeb tsa
Static:10x txoj kab uas hla ntawm lub cable
Ddynamic: 20x txoj kab uas hla ntawm lub cable
6.2 Qhov kub ntawm daim ntawv thov
Kev Ua Haujlwm: -20℃ ~ +70℃
Kev teeb tsa: -10℃ ~ +60℃
Kev Khaws Cia/Kev Thauj Mus Los: -20℃ ~ +70℃
6.3 Kev ntsuam xyuas kev ua haujlwm ntawm txhua yam khoom siv thiab ib puag ncig
| Khoom | Txoj Kev Ntsuas | Kev Txais Yuav |
| Lub zog tensile IEC60794-1-2-E1 | - Thauj khoom: MaxKev nruj ua haujlwm uas tso cai- Qhov ntev ntawm cable: li 50m- Lub sijhawm thauj khoom: 1 feeb | - Kev nyuaj siab ntawm cov fiber£0.33%- Tsis muaj kev tawg fiber thiab tsis muaj kev puas tsuaj rau lub plhaub. |
| Kev Ntsuas Kev Sib Tsoo IEC 60794-1-2-E3 | - Thauj khoom: Lub sijhawm luv luvkev tsoo- Lub sijhawm thauj khoom: 1 feeb | - Lhloov pauv £ 0.1dB@1550nm- Tsis muaj fiber tawg thiab tsis muaj kev puas tsuaj rau lub plhaub. |
Cov Ntaub Ntawv Txog Kab Hlau ADSS Fiber Optic Cable Loose Tube.pdf
