1550nm Mini EDFA Module Hom Fiber Optic Amplifier 1/2/4 Outputs
Tus Qauv Zauv: SEM1550-XX
Hom:Softel
MOQ:1
1/2/4/8 Cov Kev Tawm Tswv Yim Kho Qhov Muag Xaiv Tau
Txais yuav JDSU lossis Oclaro Pump Laser
SC thiab FC Optic Connectors Xaiv tau
01
Kev piav qhia txog khoom
Kev Txheeb Xyuas Luv Luv
Qhia txog lub tshuab hluav taws xob me me uas tsim tshwj xeeb rau kev sib txuas lus niaj hnub no. Muaj zog versatility, nws tuaj yeem siv rau ib txoj kab lossis 1 ~ 8 txoj kab txuas ntxiv (ITU wavelength), nws yog qhov kev xaiv zoo rau fiber optic CATV system.
Tsis zoo li cov kab ke ib txwm muaj, cov kab ke fiber optic CATV ua haujlwm ntawm ib qho wavelength thiab tsis muaj cov kev cai nruj ntawm qhov nce tiaj tus. Peb lub SEM550 booster amplifier sawv tawm rau nws qhov zoo heev NF qis thiab lub zog tso zis siab. Nrog nws cov yam ntxwv siab heev, lub amplifier tuaj yeem siv tau yooj yim hauv chaw ua haujlwm hauv nruab nrab, chaw ua haujlwm ceg, kab relay nrog rau kev sib txuas lus optical network.
Vim nws cov yam ntxwv zoo tshaj plaws, SEM1550 tau ua pov thawj tias yog lub amplifier optical nrov tshaj plaws thiab siv dav hauv CATV systems. Yog li ntawd, nruab koj tus kheej nrog peb cov SEM550 Booster siab heev thiab muaj kev sib txuas lus zoo li tsis tau muaj dua li.

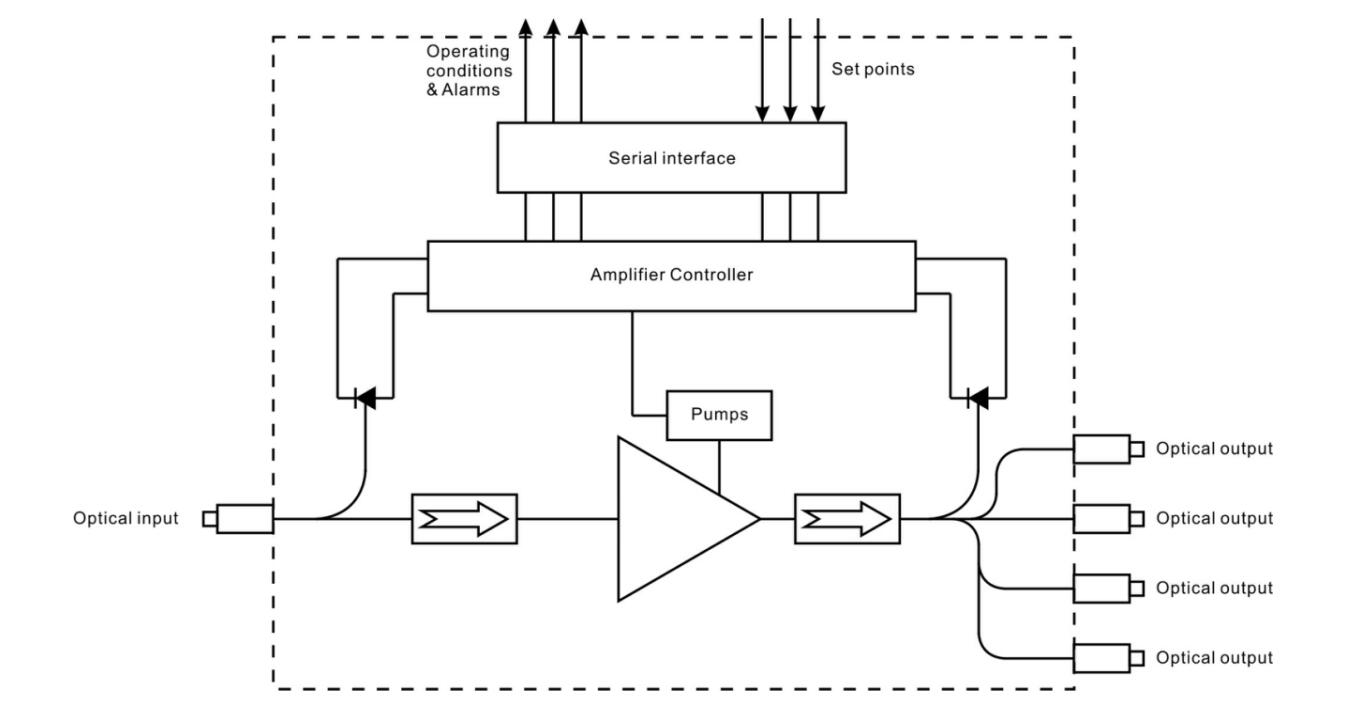

Cov yam ntxwv ua haujlwm
- Txais yuav OFS fiber
-Micro saib PCB
-Qhov tso zis kho tau (-4 ~ + 0.5)
-1/2/4/8 Cov Kev Tawm Tswv Yim Kho Qhov Muag Xaiv Tau
-Txais yuav JDSU lossis Oclaro Twj Tso Kua Laser.
-SC thiab FC Optic Connectors Xaiv tau
-Max outputs 23dBm (Ib lub twj tso kua mis laser).
-Kev siv hluav taws xob tsawg, tab sis kev ruaj khov siab
-SMT cov txheej txheem ntau lawm los tsim cov khoom me me
| 1550nm Mini EDFA Module Hom Fiber Optic Amplifier 1/2/4 Outputs | |
| Cov khoom | Cov Kev Cai |
| Qauv | 1550-14~23 |
| Tso zis (dBm) | 14~23 |
| Cov tswv yim (dBm) | -10～10 |
| Qhov ntev ntawm lub zog (nm) | 1530 xyoo～1560 xyoo |
| Cov zis kho tau ntau yam (dBm) | UP0.5, qis dua -4.0 |
| Kev Ruaj Ntseg ntawm Cov zis (dB) | ≤0.2 |
| Kev cuam tshuam polarization (dB) | ＜0.2 |
| Kev tawg ntawm polarization (PS) | ＜0.5 |
| Kev Rov Qab Los Ntawm Qhov Muag (dB) | ≥45 |
| Fiber Connector | FC/APC,SC/APC |
| Daim Duab Suab Nrov (dB) | ＜5（0dBm tswv yim) |
| Kev Siv Hluav Taws Xob (W) | 12W |
| Kev Muab Fais Fab (V) | +5V( Sab nraud 95-250V) |
| Lub Sijhawm Ua Haujlwm (℃) | -20～+60 |
| Qhov hnyav (Kg) | 0.25 |
| Kev them nqi zog optical | ||||||||||||||||
| mW | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| dBm | 0.0 | 3.0 | 4.8 | 6.0 | 7.0 | 7.8 | 8.5 | 9.0 | 9.5 | 10.0 | 10.4 | 10.8 | 11.1 | 11.5 | 11.8 | 12.0 |
| mW | 17 | 18 | 19 | 20 | 21 | 22 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
| dBm | 12.3 | 12.5 | 12.8 | 13.0 | 13.2 | 13.4 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 |
| mW | 250 | 320 | 400 | 500 | 640 | 800 | 1000 | 1280 | 1600 xyoo | 2000 xyoo | 2560 | 3200 | 4000 |
|
|
|
| dBm | 24 | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 | 35 | 36 |
|
| |
SEM 1550nm Module Hom Mini Fiber Optic EDFA Spec Sheet.pdf
