SR814ST Series Sab Nraum Zoov Bidirectional Fiber Optical Node 4 Chaw Nres Nkoj
Tus Qauv Zauv: SR814ST
Hom: Softel
MOQ: 1
Qib Tso Tawm Siab Tshaj ≥ 112dBμV
Qib Tso Tawm, CTB thiab CSO Yeej Tsis Hloov Pauv
Kev Muab Fais Fab Xaiv Tau Rau AC (150 ~ 265) V lossis AC (35 ~ 90) V
01
Kev piav qhia txog khoom
Cov Lus Qhia Txog Khoom
Peb lub tuam txhab qhov tseeb tshaj plaws plaub-output CATV network optical receiver SR814ST, lub pre-amplifier siv tag nrho GaAs MMIC, thiab lub post-amplifier siv GaAs modules. Nrog rau kev tsim hluav taws xob zoo tshaj plaws thiab 10 xyoo ntawm kev tsim qauv kev tshaj lij, lub cuab yeej tau ua tiav cov cim qhia kev ua tau zoo heev. Tsis tas li ntawd, kev tswj hwm microprocessor thiab cov zaub digital parameter ua rau kev debugging engineering yooj yim heev. Nws yog cov khoom siv tseem ceeb tsim nyog rau kev tsim CATV network.
Cov yam ntxwv ntawm kev ua tau zoo

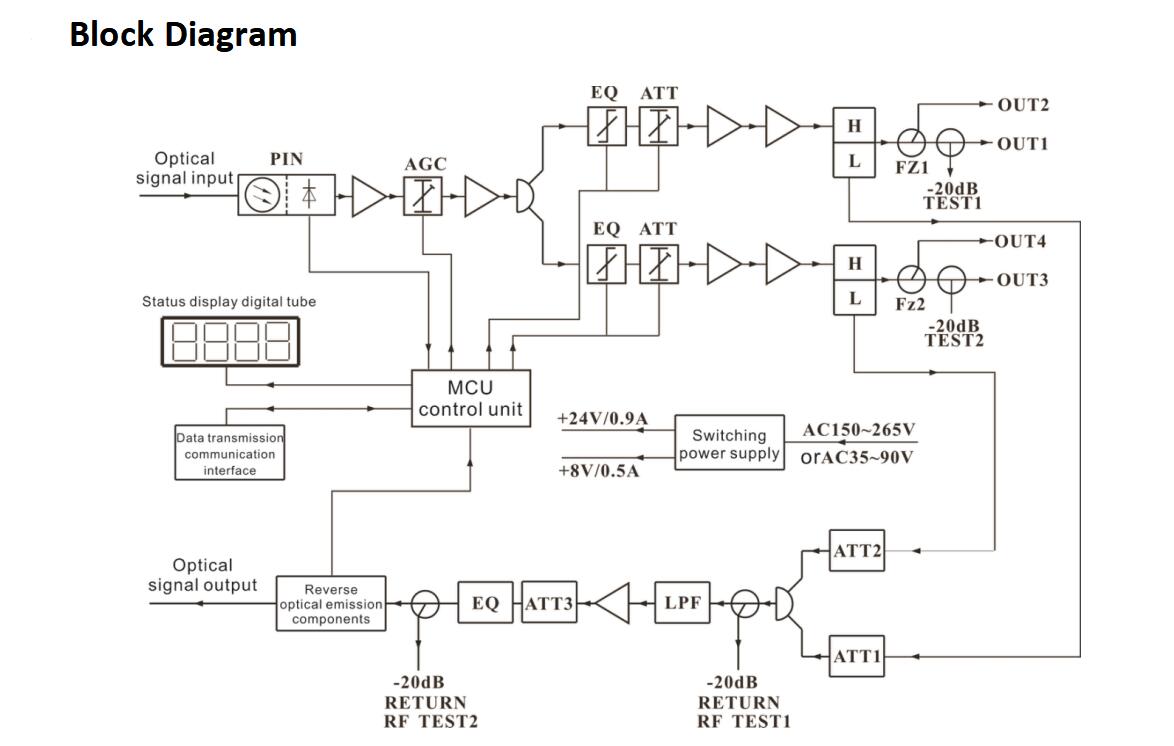

Peb lub CATV network optical receiver SR814ST adopts high-responsive PIN photoelectric conversion tube, optimizes circuit tsim thiab SMT txheej txheem ntau lawm, thiab paub tseeb tias du thiab zoo kis tau cov teeb liab photoelectric.
Cov chips RF attenuation tshwj xeeb muab cov linear attenuation meej, thaum peb cov khoom siv GaAs amplifier muab qhov nce siab thiab qis distortion. Lub kaw lus yog tswj los ntawm ib lub microcomputer ib leeg-chip (SCM), nrog cov qauv LCD zaub, kev ua haujlwm yooj yim thiab intuitive, thiab kev ua haujlwm ruaj khov.
Lub kaw lus AGC ua kom ntseeg tau tias qib tso zis tseem nyob ruaj khov ntawm qhov ntau ntawm lub zog kho qhov muag ntawm -9 txog +2 dBm nrog kev cuam tshuam tsawg kawg los ntawm CTB thiab CSO. Lub kaw lus kuj suav nrog lub interface sib txuas lus cov ntaub ntawv tshwj tseg, uas tuaj yeem txuas nrog hom II network management responder thiab txuas nrog lub network management system. Txhua yam kev ntsuas raug ntsuas raws li GY / T 194-2003, nyob rau hauv cov xwm txheej xeem txheem.
Tsis tau paub meej tias yog dab tsi?
Vim li cas ho tsismus saib peb nplooj ntawv tiv tauj, peb xav nrog koj tham!

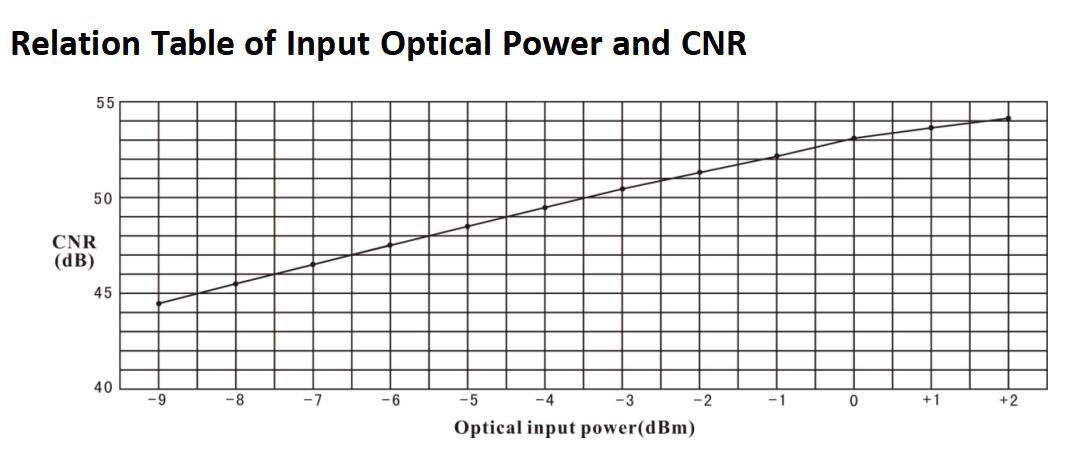

| SR814ST Series Sab Nraum Zoov Bidirectional Fiber Optical Node 4 Chaw Nres Nkoj | ||||
| Khoom | Chav tsev | Cov Kev Ntsuas Kev Txawj | ||
| Cov Kev Ntsuas Kho Qhov Muag | ||||
| Tau Txais Lub Hwj Chim Optical | dBm | -9 ~ +2 | ||
| Kev poob rov qab los ntawm kev kho qhov muag | dB | >45 | ||
| Kev Txais Teeb Pom Kev Zoo Wavelength | nm | 1100 ~ 1600 | ||
| Hom Txuas Optical |
| FC/APC, SC/APC lossis teev los ntawm tus neeg siv | ||
| Hom Fiber |
| Ib Hom | ||
| TxuasKev ua tau zoo | ||||
| C/N | dB | ≥ 51（-2dBm tswv yim) | ||
| C/CTB | dB | ≥ 65 | Qib Tso Tawm 108 dBμV Sib npaug 6dB | |
| C/CSO | dB | ≥ 60 | ||
| Cov Kev Ntsuas RF | ||||
| Zaus Ntau | MHz | 45 ~ 862 | ||
| Kev tiaj tus hauv Band | dB | ±0.75 | ||
| Qib Tso Tawm Rated | dBμV | ≥ 108 | ||
| Qib Tso Tawm Siab Tshaj Plaws | dBμV | ≥ 112 | ||
| Kev poob rov qab los ntawm cov zis | dB | ≥16 (45-550MHz) | ≥14 (550-862MHz) | |
| Cov zis Impedance | Ω | 75 | ||
| Kev Tswj Xyuas Hluav Taws Xob EQ Ntau Yam | dB | 0～10 | ||
| Kev Tswj Xyuas Hluav Taws Xob ATT Range | dBμV | 0～20 | ||
| Rov qab Optical Transmit ib feem | ||||
| Cov Kev Ntsuas Kho Qhov Muag | ||||
| Kev xa tawm ntawm lub teeb pom kev zoo | nm | 1310 ± 10, 1550 ± 10 lossis teev los ntawm tus neeg siv | ||
| Tso zis Optical Fais fab | mW | 0.5, 1, 2（xaiv tau) | ||
| Hom Txuas Optical |
| FC/APC, SC/APC lossis teev los ntawm tus neeg siv | ||
| Cov Kev Ntsuas RF | ||||
| Zaus Ntau | MHz | 5 ~ 42（los yog teev los ntawm tus neeg siv) | ||
| Kev tiaj tus hauv Band | dB | ±1 | ||
| Qib Tswv Yim | dBμV | 72 ~ 85 | ||
| Cov zis Impedance | Ω | 75 | ||
| Kev Ua Tau Zoo Dav Dav | ||||
| Kev Muab Hluav Taws Xob | V | A: AC (150 ~ 265) V;B: AC (35 ~ 90) V | ||
| Kub Ua Haujlwm | ℃ | -40~60 | ||
| Kub Cia Khoom | ℃ | -40~65 | ||
| Qhov av noo sib piv | % | Max 95% tsis muajCkev ntxhov siab | ||
| Kev siv nyiaj | VA | ≤ 30 | ||
| Qhov Loj | mm | 320（L)╳ 200（W)╳ 140（H) | ||
